Description

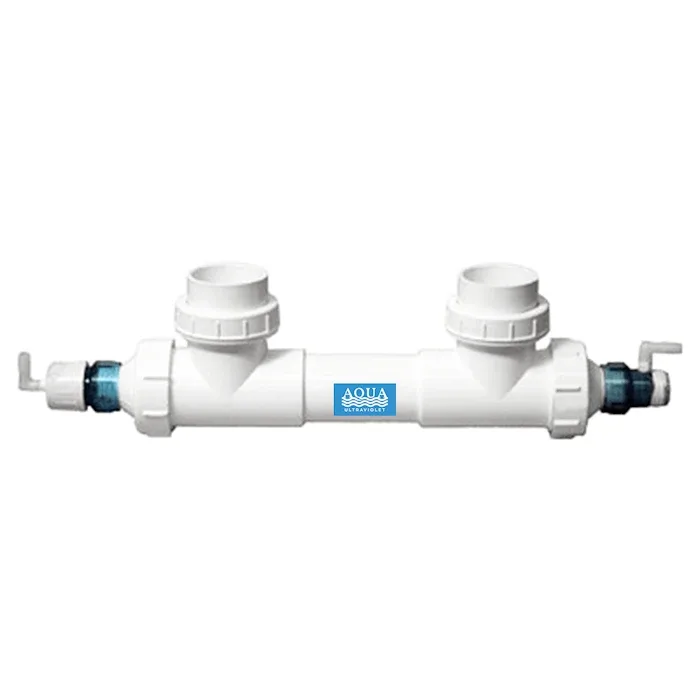

Aqua UV Ozone/UV Combo 25 Watt 2″ – White
Available Ozone/UV 25 Watt Series Units:
Ozone/UV 25 Watt Unit(PN: A00223) Ozone, 25 Watt Unit, 2″ Inlet/Outlet, White, 120V/60Hz
Specifications
Dimensions: 22” x 3-3/4” x 6”
Number of Lamps
1
120 Volt Amp Draw
0.48
Grams PD
6
Water Sterilization Measurements
Saltwater: 150 GallonsFreshwater: 500 – 1,200 Gallons
Recommended Flow Rate for UV Dosages
at 30,000 µw/cm2 (EOL) GPH: 1,200 (Max Flow Rate)at 45,000 µw/cm2 (EOL) GPH: 800at 60,000 µw/cm2 (EOL) GPH: 600at 75,000 µw/cm2 (EOL) GPH: 480at 90,000 µw/cm2 (EOL) GPH: 400 (Min Flow Rate)
Information for Reef Tanks
A UV rated in the 30,000 or 45,000 µw/cm2 (EOL) is ideal for the reef environment. UV’s used at higher kill rates will destroy the planktonic food supply for the reef.
Information for Marine Fish
(No reef or live rock) A UV rated in the 75,000 or 90,000 µw/cm2 (EOL) will be the most effective at controlling fish disease. All UV dosages are calculated at the end of lamp life (14 months).
