Description

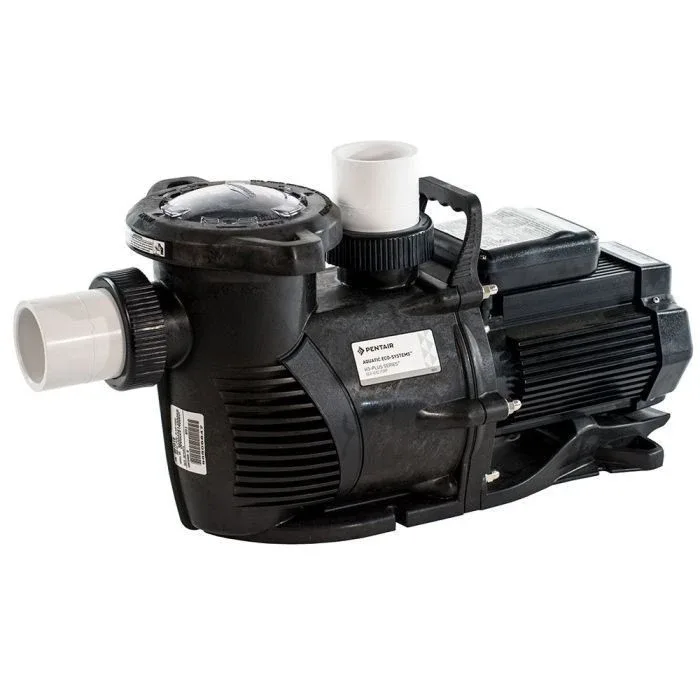

Pentair Plus Series H3-5HPE-AQ
Model: H3-5HPE-AQ
HZ: 60
HP: 5
Voltage: 208–230
Phase: 1
FL Amps: 20.8-18.9
Motor: TEFC
Dimensions: 25″ x 12″ x 14″
The new H3-PLUS SERIES™ engineered using best-in-class technology. The proprietary impeller design delivers a higher level of precision concentricity for increased efficiency. The proprietary hydraulic isolator smooths the water flow inside the volute, raising the efficiency even higher. A rugged plastic construction delivers durable pumps at an affordable price.
ULTRA-DEPENDABLE, ENERGY EFFICIENT MEDIUM HEAD PUMPS – 60Hz
The new H3-PLUS SERIES™ is engineered using best-in-class technology. The proprietary impeller design delivers a higher level of precision concentricity for increased efficiency. The proprietary hydraulic isolator smooths the water flow inside the volute, raising the efficiency even higher. A rugged plastic construction delivers durable pumps at an affordable price.
The H3-PLUS pump is a high-performance, aquaculture-duty pump designed for maximum up-time and reliable performance. This high-quality pump features an all-weather, ultra-heavy-duty TEFC (totally enclosed fan cooled) motor with an all-aluminum construction and an anodized finish for maximum corrosion resistance. The easy-to-access wiring compartment is located on top of the motor; with optimum accessibility for easy wiring, even in space constrained applications.
*Power cord NOT included*
UL778 listed. Not certified for use in swimming pool applications. One-year warranty.
• H3-PLUS Models feature Aquaculture-duty, single and three phase TEFC motors with anodized aluminum construction• Union connectors included for connecting directly to 2.5” or 3” plumbing.• O-ring seals are made of oxidation-resistant, self-retaining EPDM rubber for increased durability and tighter seal• Extra-large, robust basket with smooth surface for easy debris removal• Easy-carry handle; easily removable, ergonomic lock ring; and see-through lid for easy basket inspection• H3 pumps have IP55-rated enclosures for wet locations and harsh conditions
• Freshwater and Saltwater compatible, 316SS internal fasteners, EPDM/Stainless mechanical seal.• Hydraulic isolator separates priming water from pumping water for faster priming, more turbulent-free flow and increased efficiency.• Union connectors included for connecting directly to 2.5″ or 3″ plumbing.• Diamond seals made of oxidation-resistant, self-retaining EPDM rubber for increased durability and tighter seal.• Extra-large, robust basket with smooth surface for easy debris removal.• Easy-carry handle; easily removable, ergonomic lock ring; and see-through lid for easy basket inspection
